Plan Details

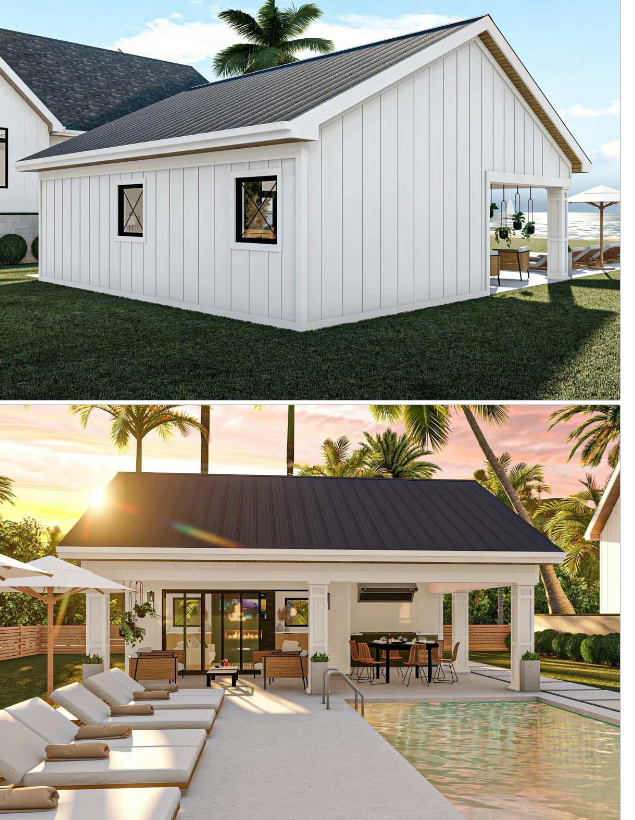

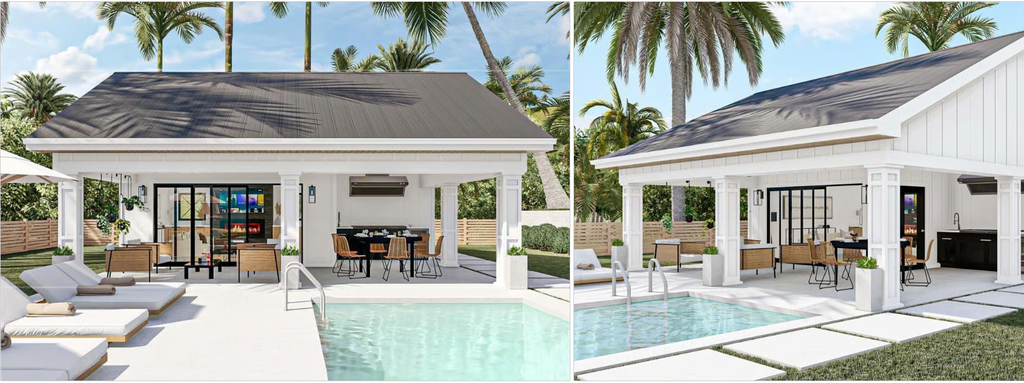

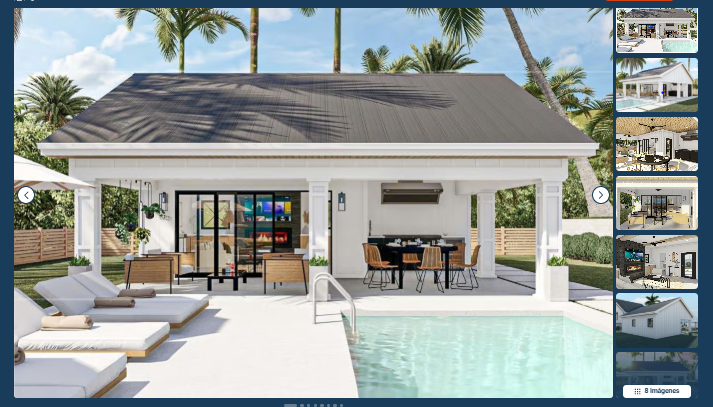

This attractive pool house plan features board-and-batten siding and a standing-seam metal roof and is the perfect complement to your Craftsman, New American, or Modern Farmhouse-style home. A spacious covered porch provides an ideal place to relax after a day of swimming.

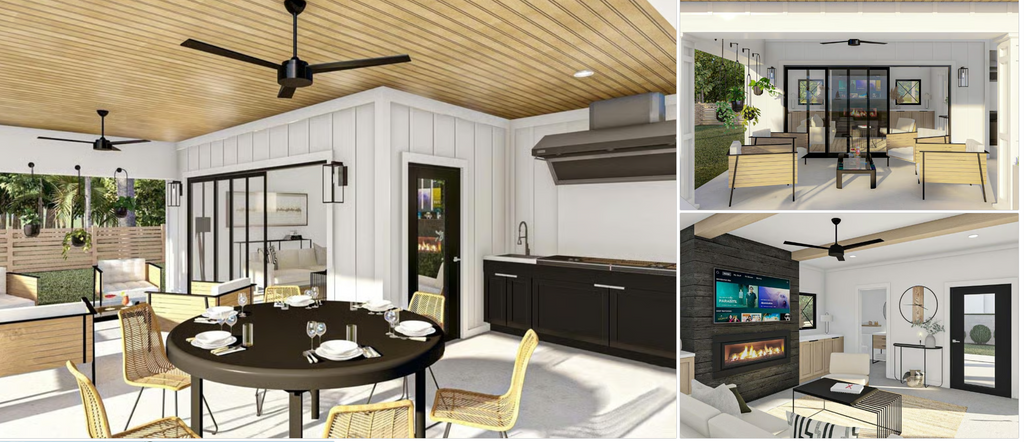

Perfect for entertaining, an outdoor kitchen with a range hood is accessible beneath the covered porch.
Inside the pool house, a cozy fireplace is flanked by built-in bookshelves. The main interior space opens to the covered porch through a large sliding glass door.
To the right of the interior area is a bathroom.
What's Included
Cover Page: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, back, and sides of the home, including exterior materials, details, and measurements.
Floor Plans: Show the location of walls and the dimensions of rooms, doors, windows, stairwells, etc. for each floor.
Electrical Plans: Show the location of outlets, fixtures, and switches. They are shown on a separate sheet for ease of reading.
Foundation Plans: These will include a basement, crawl space, or slab, depending on what is available for the home plan. (See the plan detail sheet to see the foundation options available for each home.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Staircase Section (if applicable)
Cabinet Elevations (if applicable)
What's Not Included
Architectural or Engineering Stamp: Managed locally if needed
Site Plan: Managed locally when needed
Mechanical Drawings (location of HVAC equipment and ductwork): Your subcontractors handle these
Plumbing Plans (plans showing the actual sizes and locations of plumbing pipes): Your subcontractors handle these
Energy Calculations: Managed locally when needed
